Introduction：

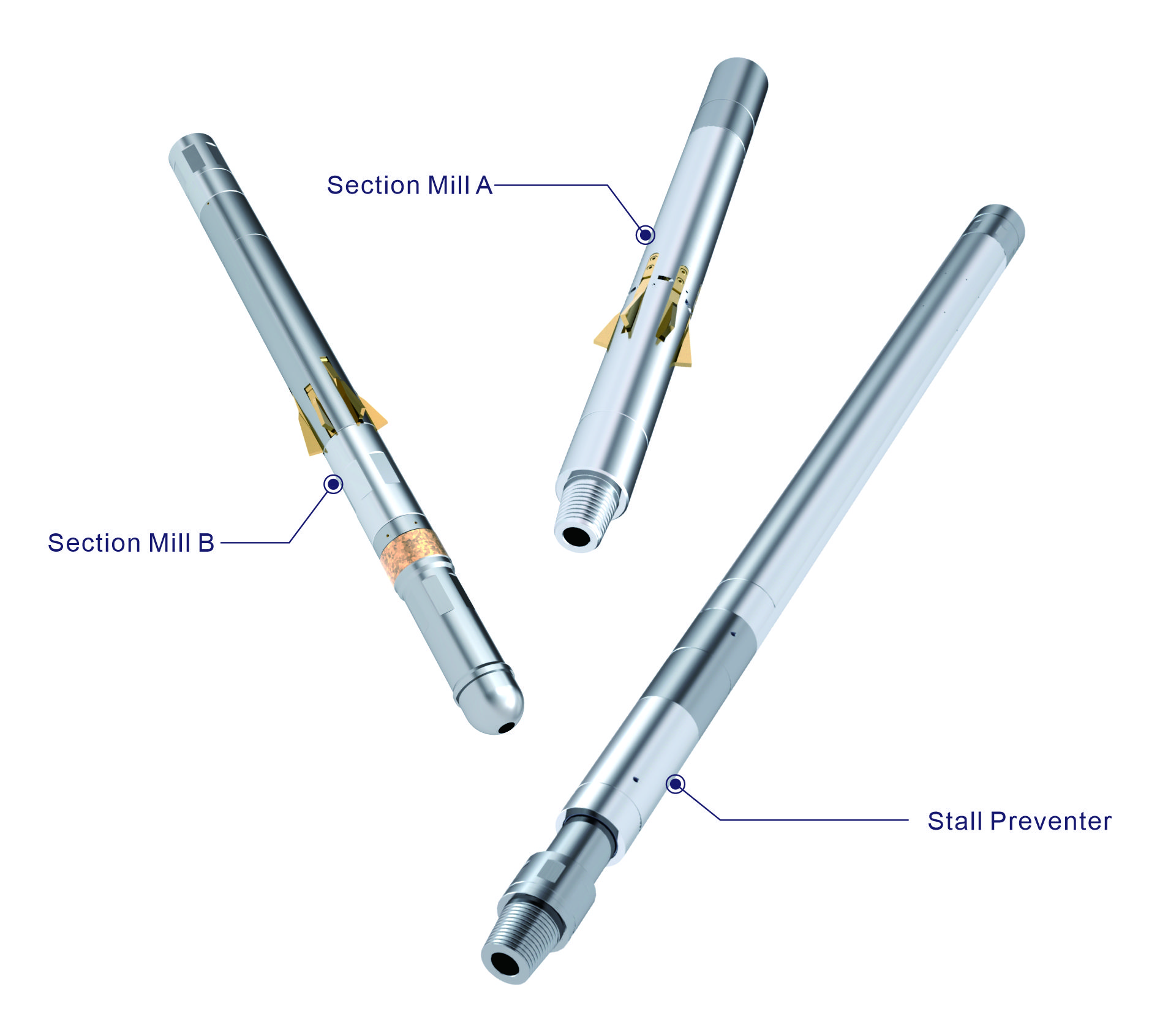

The casing section milling system integrates a casing section mill and a

stall preventer. The casing section mill housing adopts a split threaded

connection structure, eliminating auxiliary components such as movable

Clamping Block. Major bolt holes and pin holes are removed from the

housing, which greatly improves the overall structural strength, avoids

cracking risks at housing hole‑opening positions, and thoroughly resolves

failures including bolt loosening and falling off caused by vibration in

conventional structures. Meanwhile, the structural design and manufacturing

process of the cutter blades are optimized, delivering advantages of short

windowing time, high section‑milling efficiency and long service life.

Under working conditions of excessive cutting depth of blades, the stall

preventer automatically and adaptively adjusts WOB and torque to

prevent cutter from damage due to instantaneous torque release, thus

maximizing the overall service life of the tool.

Features and Benefits：

★ Extremely high efficiency in window cutting and milling

★ Field-replaceable blades

★ Compatible with mud motor for operations

★ Exceptionally long blade lifespan

★ Model B features no milling slots or drilled holes on the main body for

fixing blades, delivering extremely high overall strength and superior

adaptability to high‑grade steel applications.
