Introduction：

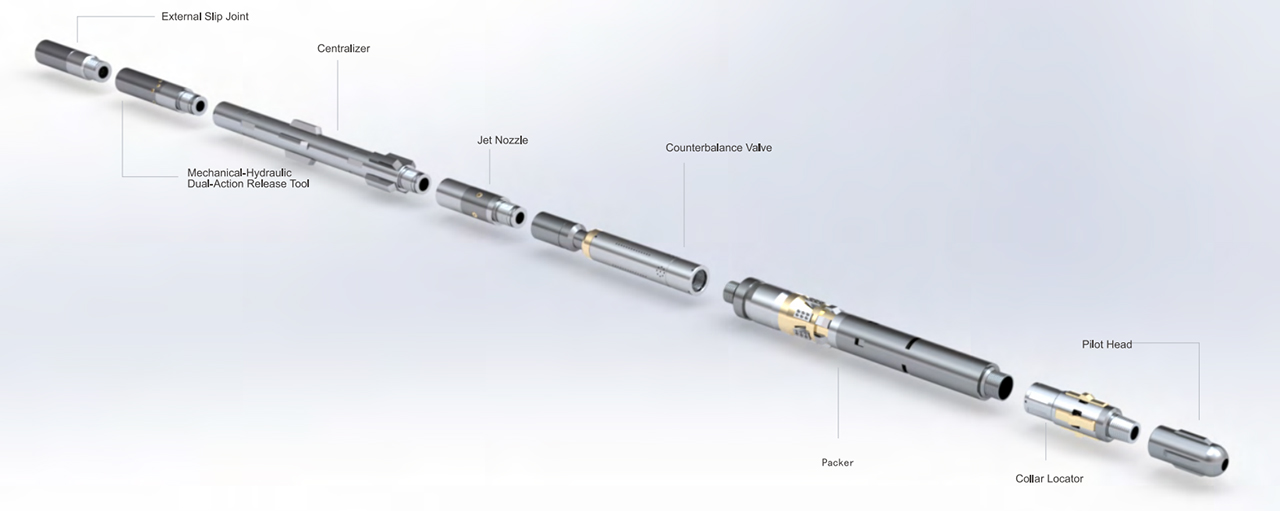

The drag fracturing tool can be deployed through coiled tubing in a single run to achieve unlimited-stage fracturing operations. Its main structure includes an MMCL collar locator, a setting system, a hydraulic jetting system, and a hydraulic release system. Additional components such as centralizers and guide heads can be added based on operational requirements.
Features and Benefits：
★ Stable and reliable setting
★ Long-life seal cartridge
★ Long-life hydraulic jetting structure
★ Reliable release mechanism
Tool Name | Tool Compatibility Size | O.D. mm | I.D. mm | Length mm | Connection Type |
External Slip Joint | 1-3/4"CT | 73mm | 35mm | 270mm | 2.5"-8.0STUB ACME |
2"CT | 78mm | 42mm | 266mm | 2.5"-8.0STUB ACME | |
2-3/8"CT | 90mm | 52mm | 324mm | 2.5"-8.0STUB ACME | |
Mechanical-Hydraulic Dual-Action Release Tool | 1-3/4"CT | 73mm | 25mm | 530mm | 2.5"-8.0STUB ACME |
2"CT | 78mm | 32mm | 554mm | 2.5"-8.0STUB ACME | |
2-3/8"CT | 90mm | 38mm | 554mm | 2.5"-8.0STUB ACME | |
Centralizer | 4 1/2"Casing | 95mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME |
5"Casing | 108mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 117mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
7"Casing | 150mm | 65mm | 620mm | 2.5"-8.0STUB ACME | |
Jet Nozzle | 4 1/2"Casing | 73mm | 33mm | 290mm | 2.5"-8.0STUB ACME |
5"Casing | 85mm | 33mm | 290mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 92mm | 42mm | 290mm | 2.5"-8.0STUB ACME | |
7"Casing | 125mm | 65mm | 290mm | 2.5"-8.0STUB ACME | |
Counterbalance Valve | 4 1/2"Casing | 82.5mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA |
5"Casing | 82.55mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA | |
5 1/2"Casing | 82.5mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA | |
7"Casing | 105mm | 40mm | 623mm | T2-5/16"-8SA×2.5"-8.0SA | |
Packer | 4 1/2"Casing | 95.6mm | 32mm | 960mm | T2-5/16"-8SA X 2.5"-8.0SA |
5"Casing | 102mm | 38.4mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
5 1/2"Casing | 114mm | 42.6mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
7"Casing | 150mm | 50.8mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
Collar Locator | 4 1/2"Casing | 108mm | 25mm | 740mm | 2.5"-8.0STUB ACME |
5"Casing | 120mm | 33mm | 740mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 132mm | 33mm | 740mm | 2.5"-8.0STUB ACME | |
7"Casing | 169mm | 76mm | 740mm | 2.5"-8.0STUB ACME | |
Pilot Head | 4 1/2"Casing | 95mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME |
5"Casing | 108mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 115mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
7"Casing | 150mm | 65mm | 620mm | 2.5"-8.0STUB ACME |
