介绍：

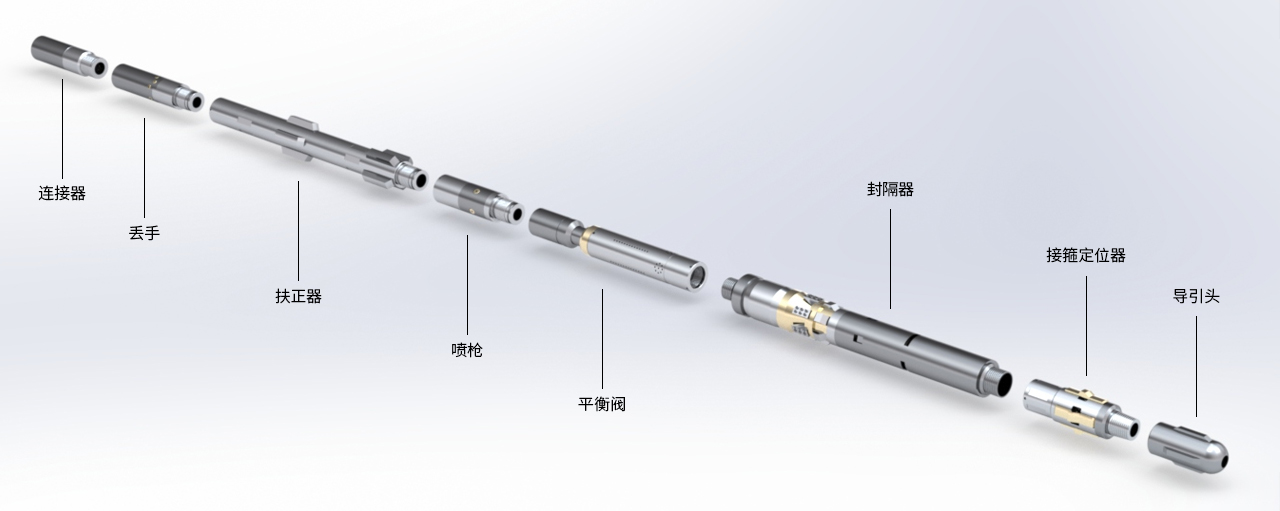

拖动压裂工具可以通过连续油管单次送入实现不限级数的压裂施工。其主要结构包含MMCL 接箍定位器，坐封系统，水力喷射系统，液压丢手系统，根据作业需要可选扶正器和导引头等部件。
特点：
★ 稳定可靠的坐封
★ 长寿命密封胶桶
★ 长寿命水力喷射结构
★ 可靠的丢手结构
工具名称 | 适用尺寸 | 外径mm | 内径mm | 长度mm | 扣型 |
外卡瓦接头 | 1-3/4"CT | 73mm | 35mm | 270mm | 2.5"-8.0STUB ACME |
2"CT | 78mm | 42mm | 266mm | 2.5"-8.0STUB ACME | |
2-3/8"CT | 90mm | 52mm | 324mm | 2.5"-8.0STUB ACME | |
机械液压双作用丢手 | 1-3/4"CT | 73mm | 25mm | 530mm | 2.5"-8.0STUB ACME |
2"CT | 78mm | 32mm | 554mm | 2.5"-8.0STUB ACME | |
2-3/8"CT | 90mm | 38mm | 554mm | 2.5"-8.0STUB ACME | |
扶正器 | 4 1/2"Casing | 95mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME |
5"Casing | 108mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 117mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
7"Casing | 150mm | 65mm | 620mm | 2.5"-8.0STUB ACME | |
喷枪 | 4 1/2"Casing | 73mm | 33mm | 290mm | 2.5"-8.0STUB ACME |
5"Casing | 85mm | 33mm | 290mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 92mm | 42mm | 290mm | 2.5"-8.0STUB ACME | |
7"Casing | 125mm | 65mm | 290mm | 2.5"-8.0STUB ACME | |
循环阀 | 4 1/2"Casing | 82.5mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA |
5"Casing | 82.55mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA | |
5 1/2"Casing | 82.5mm | 31mm | 608mm | T2-5/16"-8SA×2.5"-8.0SA | |
7"Casing | 105mm | 40mm | 623mm | T2-5/16"-8SA×2.5"-8.0SA | |
封隔器 | 4 1/2"Casing | 95.6mm | 32mm | 960mm | T2-5/16"-8SA X 2.5"-8.0SA |
5"Casing | 102mm | 38.4mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
5 1/2"Casing | 114mm | 42.6mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
7"Casing | 150mm | 50.8mm | 980mm | T2-5/16"-8SA X 2.5"-8.0SA | |
接箍定位器 | 4 1/2"Casing | 108mm | 25mm | 740mm | 2.5"-8.0STUB ACME |
5"Casing | 120mm | 33mm | 740mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 132mm | 33mm | 740mm | 2.5"-8.0STUB ACME | |
7"Casing | 169mm | 76mm | 740mm | 2.5"-8.0STUB ACME | |
引导头 | 4 1/2"Casing | 95mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME |
5"Casing | 108mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
5 1/2"Casing | 115mm | 47.5mm | 620mm | 2.5"-8.0STUB ACME | |
7"Casing | 150mm | 65mm | 620mm | 2.5"-8.0STUB ACME |
